10 Whitechapel – 5th Floor
Commercial BMS Installation and System Integration
Alpha Controls completed a full Building Management System (BMS) installation on the 5th Floor at 10 Whitechapel, London, as part of a major commercial office refurbishment. The new system featured a complete Trend IQ4 ECO network, open-protocol BACnet/IP integration, and Sontay field devices throughout, delivering reliable, future-ready control and monitoring for all HVAC and environmental systems.
Key Results
In-House Panel Manufacturing
Complete quality control and seamless integration
BACnet/IP Integration
Open-protocol communication across all systems
Sontay Field Devices
Robust, accurate environmental monitoring
Flexible Zone Control
Auditorium bi-fold partition monitoring
Project Scope

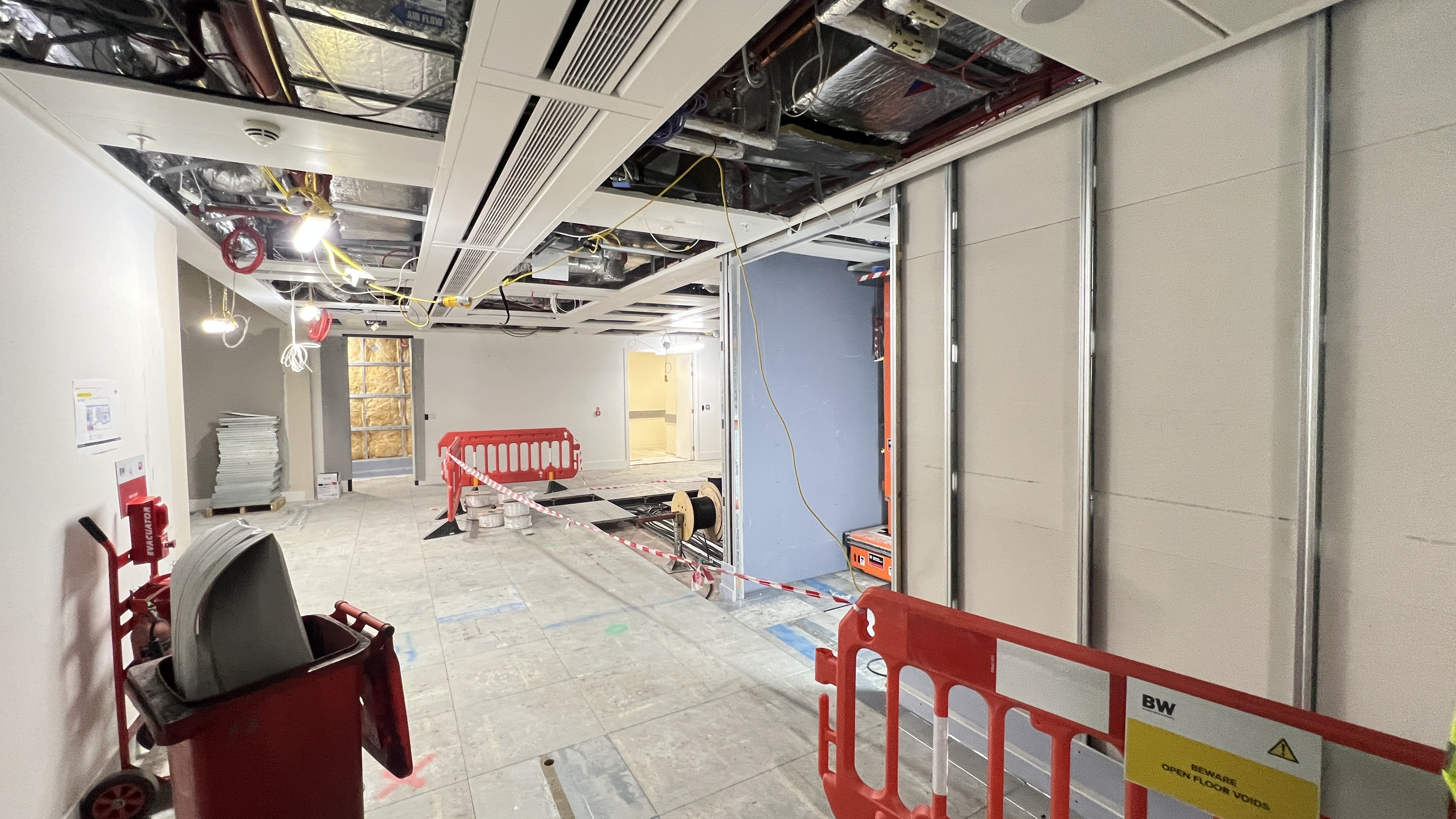

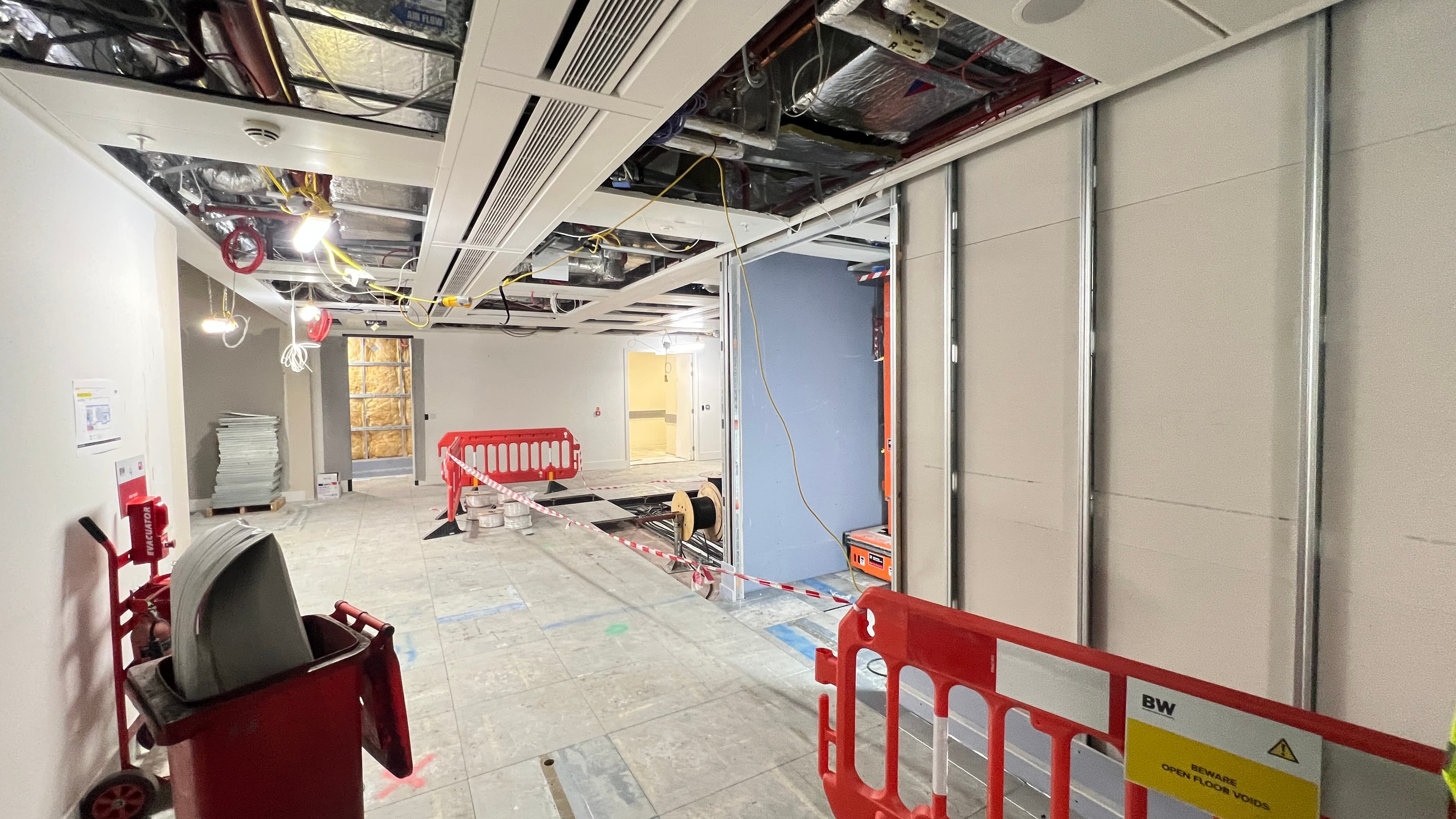

The 5th floor refurbishment required a new BMS system to serve upgraded mechanical and electrical plant. Alpha Controls designed, supplied, and commissioned a new BMS panel, fully built in-house and equipped with Trend IQ4 ECO controllers.
The installation scope included:
- New CO₂ sensors for air-quality and occupancy control
- Integration of chilled beam controls relocated during ceiling works
- Heating water temperature sensors and flow monitoring
- Electrical metering network integrated via BACnet
- Leak detection point monitoring (existing system retained)
- Control of AC units, inline fans, and trench heating circuits
- Auditorium bi-fold partition monitoring, allowing the space to operate as one combined zone or two independently controlled areas
Panel Design and Field Equipment

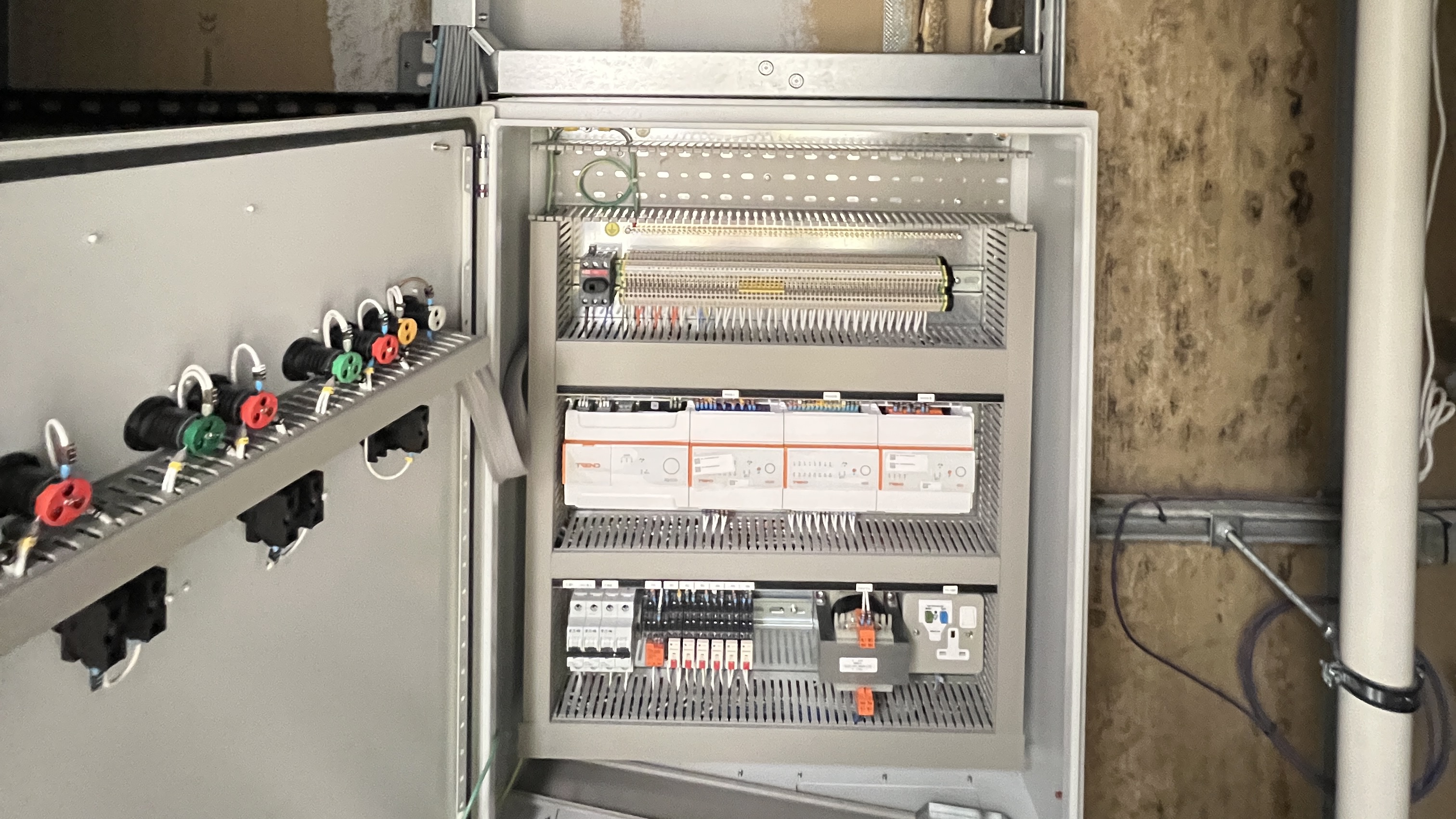

The new panel was designed and manufactured by Alpha Controls' panel division, ensuring complete quality control and a seamless integration process. The system incorporated Trend IQ4 ECO controllers working with Sontay field devices — selected for their robust construction, accuracy, and long-term reliability. These devices provide consistent feedback for temperature, CO₂, and water parameters, enabling stable system control and precise environmental management.

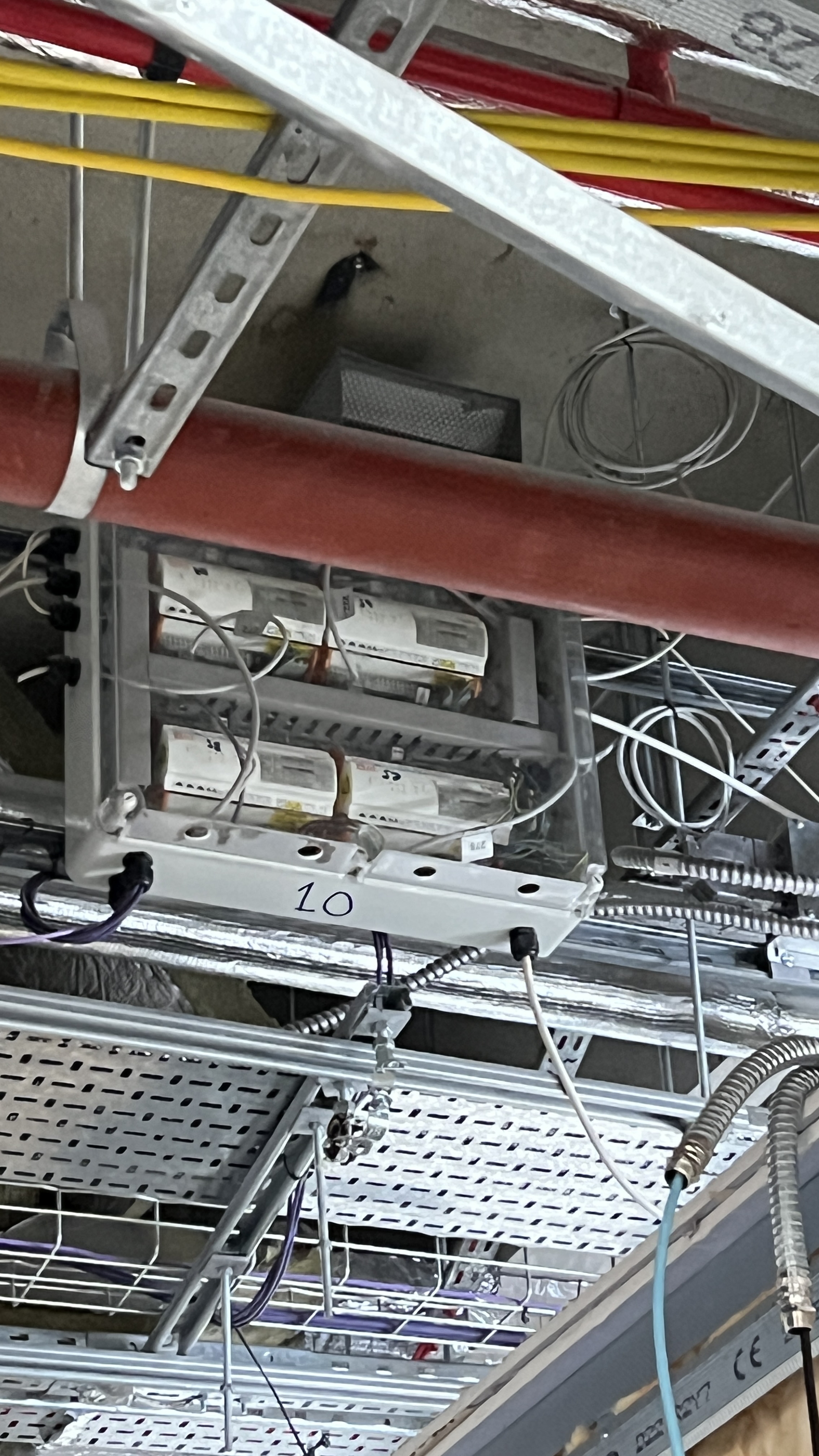

A new Cat-6 network riser backbone was installed to interlink all service panels and integrate with existing building systems over BACnet. Existing plastic control boxes were relocated to suit the new wall and ceiling layout, while new cable-management systems (CMS) — including tray and trunking in the riser — were installed to support the upgraded wiring infrastructure.
Integration and Commissioning
All new and existing points were rewired, tested, and re-integrated into the Trend BMS head-end. The IQ4 ECO controllers were configured to maintain communication with associated plant, ensuring complete visibility of HVAC performance, metering, and alarms.
Alpha Controls engineers coordinated closely with site management and other trades throughout the refurbishment, maintaining progress within a live environment and ensuring all systems were commissioned, witnessed, and fully operational on completion.
Technical Specifications
Results
The completed BMS at 10 Whitechapel provides:
Full System Visibility
Complete monitoring and control of HVAC, metering, and plant systems from central interface
Open-Protocol Flexibility
BACnet communication ensures long-term scalability and integration capability
Reliable Data Feedback
Robust Sontay sensors deliver accurate environmental data for stable control
Enhanced Comfort Control
Precise zone management with flexible auditorium partition control
Conclusion
The 10 Whitechapel – 5th Floor project demonstrates Alpha Controls' ability to deliver comprehensive commercial BMS installations as part of large-scale refurbishments. Through in-house panel manufacturing, open-protocol BACnet networking, and high-quality Trend and Sontay equipment, Alpha Controls delivered a dependable, efficient, and scalable control solution that enhances comfort, energy performance, and long-term building management.
